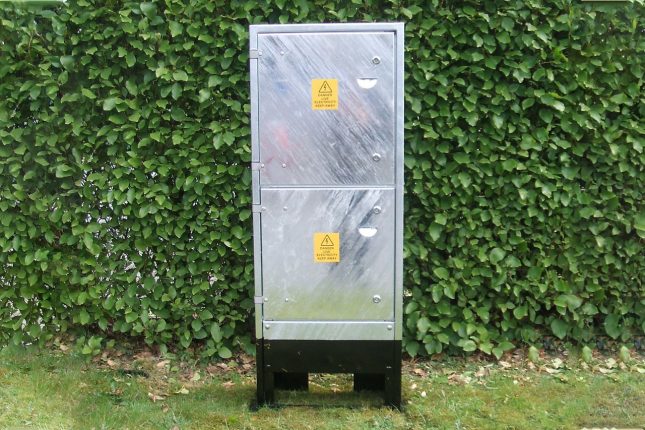

Pillar Boxes
Enclosures & kiosks

Our range of Mini pillars complies with ESB National Code of Practice.

We manufacture a range of pillars for a variety of applications. Local authorities, ESB, Electrical contractors, Telecom Network specialists, Water Utility companies and developers are just some of the customers we supply. If you have specific kiosk/enclosure requirements we can help design and construct it for you. The fixing backboard is made from 12mm thick exterior grade plywood,  treated with low flame spread wood preservative giving years of maintenance-free service. Backboards can be easily and quickly removed for wiring/fitting.

Size Variations

Design

Pillars

Finish

Pillar

CTME

CTME 250A CTME 400A

Pillars Metered Three/Single Phase

MP3-1P1350 MP3-1P1350 DIV MP3-1P1600 MP3-1P2155 SD MP3-1P1600 SD

Network Pillar

Network Pillar

Distribution Pillars

PD600X1250X450 PD800X1250X450 PD1250X1250X450 PD1250X1250X450 YL KSH PD1600X1600X450 YL PD1600X1600X450 YL KSH PD2000X1600X450 YL

Unmetered Pillars

UP1P UP1P 280W UP3/1P Lift Out UP3/1P Hinged Door UP3/1P Hinged Door 600w

Standard features:

  • Galvanised internally and externally to BS EN 1461
  • Various pillars come to IP rated as appropriate
  • Earth lead connection supplied from pillar body to door
  • Each pillar comes complete with M8 tri-head locks and it’s own access key
  • Danger warning label fitted to the doors
  • Bitumen coated root for additional protection
  • Unobstructed door handle

Tri-head cam locks, screws, and key holder locks are just some methods of securing the contents of the enclosure. Rubber extruded gaskets and seals are fitted to withstand the ingress of moisture or dust if the environmental condition or IP rating requires.

Optional features:

• Can be painted or powder coated to customer-specific color requirements
• Alternative finishes available
• Choice of backboard including 12 &18mm plywood, 12 & 18mm marine ply, galvanised sheeting, EcoSheet, PaloPlaque
• Various locking systems to offer additional security: M8 tri-head screw, M8 tri-head lock, security cam locks, yale lock, padlocks, key safe housing, or combination of any listed

Standard pillars popular with local authorities and mainly used for public lighting on road projects and housing estates can be viewed by clicking on Public Lighting Mini Pillar Brochure below. Gear tray enclosures are used for sports pitch lighting and in the security industry. Distribution Pillars are very popular with switchgear and telecom contractors. Bespoke kiosks are designed to suit specific customer requirements.

Brochures

We have various brochures available for download, each containing detailed information
and specifications for all our pillar boxes and cabinets.

To know more about Piltown Engineering or if you have a specific product or service query, please feel free to contact us anytime.

Public lighting mini pillar
Distribution pillar
Bespoke kiosks
CT Metering cabinet
