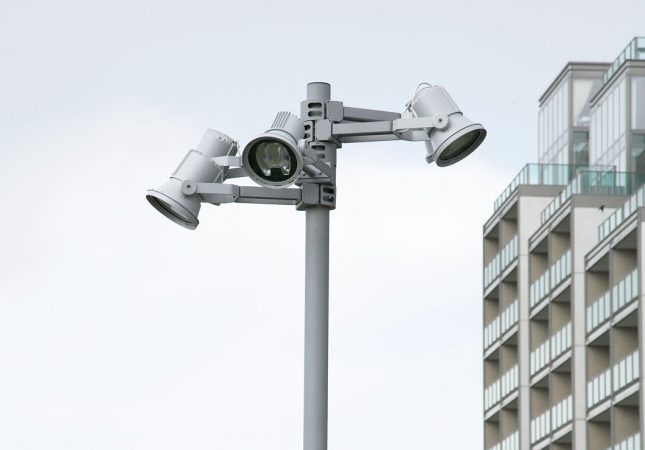

Tubular Columns

Stepped tubular columns are manufactured from differing diameter tubes, with the base section being welded to the top shaft(s). The shaft is supported internally by heavy-duty supports welded to both base and shaft sections to create a strong intermediary joint(s). Tubular columns are suitable for post top mounting or a variety of outreach or extension brackets and t bars are available to suit. Choose a bracket with 89mm socket or fitting with a 76mm diameter post top. Our range of brackets come galvanised to BS EN 1461 in 4 different diameters: 33mm, 42mm, 48mm or 60mm in various projection sizes ranging from 150mm to 2mt.

Size variations

Design

tubular columns provide timeless and elegant solution for your lighting needs and are suitable for post-top mounting or a variety of bracket arms.



Columns are designed to comply with the requirements of the Department of the Environment and local authorities and also with IS EN 40.

Finishes

Columns constructed from CHS and galvanised internally and externally to BS EN 1461. Can be finished to any RAL or BS colour, specialists finishes also available.

3mt

Tubular Columns

Usage: private yards, car parks and shopping centers.

TC3X60 TC3X76 TFC3X60 TC3X76 BB

4mts

Tubular Columns

Usage: pedestrian crossings, car parks, shopping centres and schools.

TC4X76 TC4X76-60S TFC4X60 TFC4X76

5mt

Tubular Columns

Usage: Car parks, shopping centres, and housing estates.

TC5X76 TC5X76-60S TFC5X76 TC5X76-LLF TC5X60

6mt

Tubular Columns

Estates, car parks, schools, shopping centres, garages and petrol stations.

TC6X76 TC6X76-LLF TFC6X76

8mt

Tubular Columns

Usage: Car park and street lighting.

TC8X76 TFC8X76

10mt

Tubular Columns

Usage: Small pitch lighting, car parks and decorative street lighting.

TC10X76

Base compartments

Columns are normally supplied with a single access opening and fitted within the door compartment . The compartment has a welded in frame with recessed weather strip, with a flat steel door fitted and secured by two triangular headed stainless steel bolts.

Base compartment is large enough to offer easy access to the connection equipment, which can be mounted on the hardwood baseboard within.

Recent Projects

Promenade Lighting

Promenade Lighting

Tramore Co. Waterford

Tramore council needed a decorative solution for the promenade along the beachfront. We worked closely with members from the local community to produce an attractive yet robust solution that promotes the local heritage that perfroms well under extreme conditions.

First-hand experience of our world and solving the problems we face today. It has been a breath of fresh air compared to other consulting services I have experienced.

— Joe Bloggs, Sam McCauley Pharmacy Waterford
Tubular columns
Suirside Construction

Suirside Construction

Johns St. Kilkenny

Tramore council needed a decorative solution for the promenade along the beachfront. We worked closely with members from the local community to produce an attractive yet robust solution that promotes the local heritage that perfroms well under extreme conditions.

First-hand experience of our world and solving the problems we face today. It has been a breath of fresh air compared to other consulting services I have experienced.

— John Smith, Arch + Smith, Kilkenny
Green energy
Bauch & Lomb

Bauch & Lomb

Waterford IDA

Tramore council needed a decorative solution for the promenade along the beachfront. We worked closely with members from the local community to produce an attractive yet robust solution that promotes the local heritage that perfroms well under extreme conditions.

First-hand experience of our world and solving the problems we face today. It has been a breath of fresh air compared to other consulting services I have experienced.

— Smithy Johnson, Bauch & Lomb, Waterford
